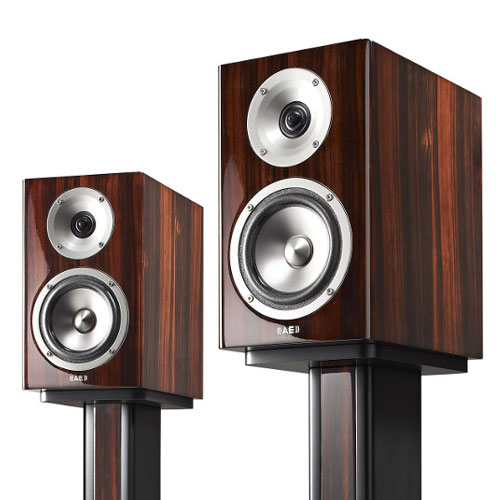

AE Reference 1
The Reference 1 was launched in 2011 incorporating all our technological
expertise in speaker design.
With the Reference Series we've sought to improve upon every aspect of
current speaker design to create a true, balanced, dynamic,
wide-bandwidth and minimal colouration loudspeaker.
Cabinet: Constrained laminate layer construction for maximum resonance
damping. A specially designed 7mm MDF/3mm high density rubber/5mm MDF
sandwich material is used throughout the cabinet enclosure to minimise
resonance and exte
al cabinet noise.
Bass Driver: Huge underhung motor assembly for maximum linear accuracy
and control. The motor system comprising twin-wound aluminium
voice-coils is thermally bonded to the aluminium cone for absolute
minimum distortion and long-throw pistonic accuracy.
Tweeter: The now well-established Vifa Ring-radiator tweeter is used
here in our own custom, upgraded specification. Coupled to our DXT® Lens
assembly for improved in-room response and dispersion matching to the
bass driver, this is one of the finest tweeters in use today.
These features wrapped into a compact, elegant design and luxuriously
finished with real piano ebony lacquer mark the new Reference Series as
the pinnacle of current small loudspeaker design.

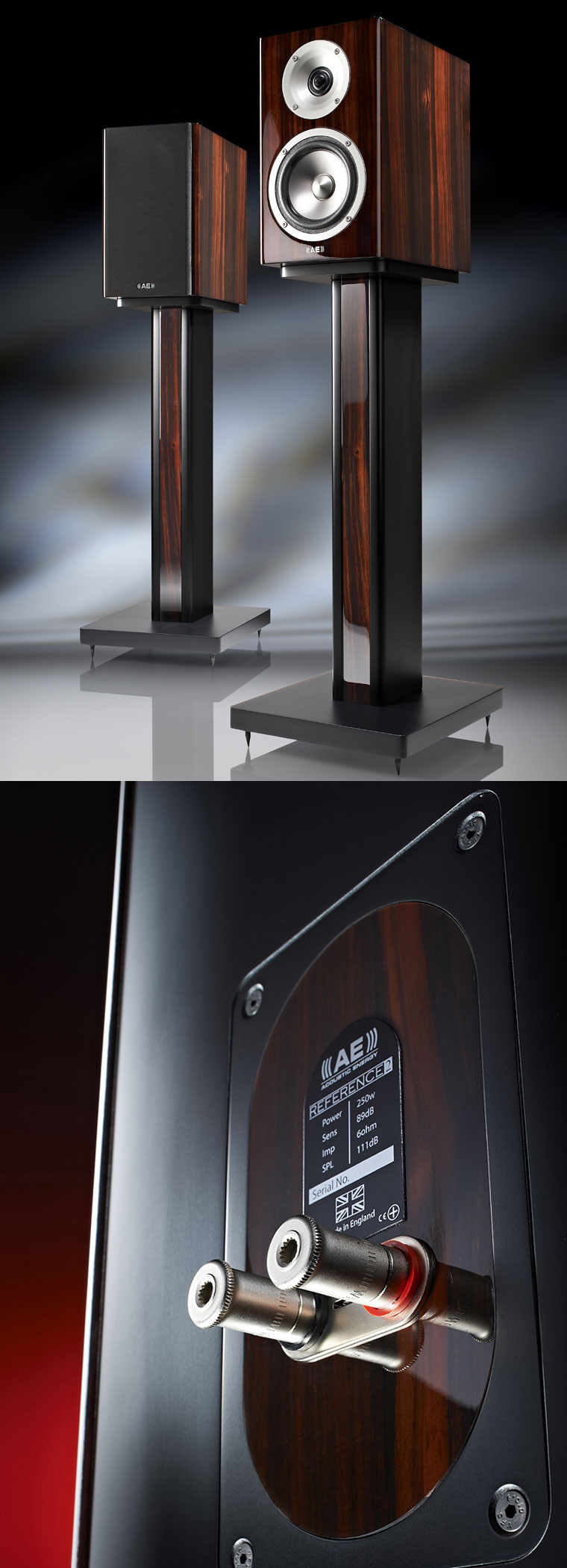

(Matching Reference Stand also available)
'What Hi-Fi?' ★★★★★ Review HERE
Technical specification
- Bass/Mid Driver: 110mm Underhung
magnet, twin voice coil assembly
- Crossover: Ultra short signal path 2nd
order crossover at 2khz
- Frequency response: 45Hz – 40kHz @
+/-3dB
- Power handling: Amplifiers rated up to
200Watts into 8 Ohms
- Sensitivity: 87db for 2.83V at 1m
- Nominal impedance: 6 Ohms
- Total harmonic Distortion: Less than
0.3% 200Hz to 20kHz
- Dimensions (HxWxD): 310 x 190 x
280mm
- Weight: 10.5kg (single, unpacked)
※ Reference 1 전용스탠드 오더
가능합니다. |
