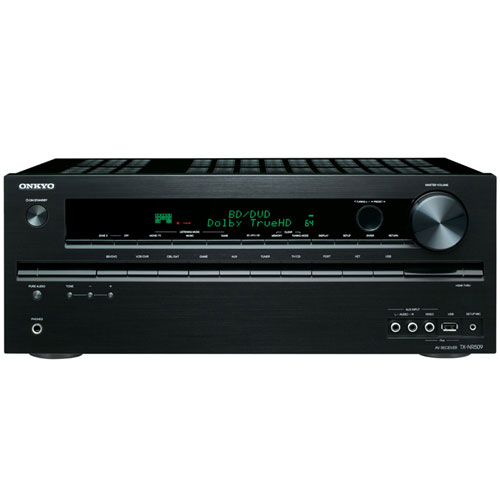

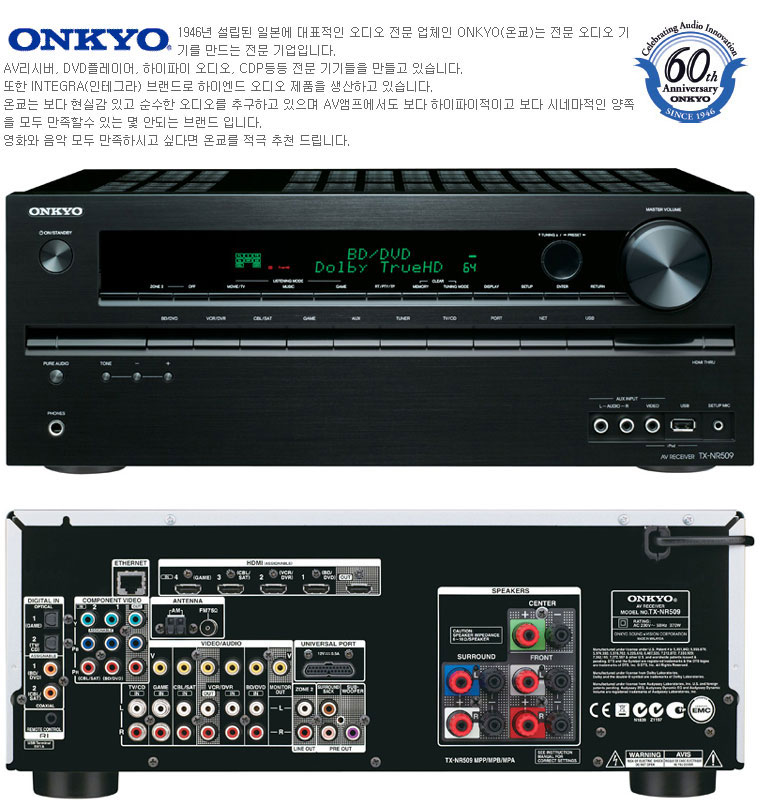

ONKYO(¿ÂÄì) TX-NR509 AV¸®½Ã¹ö
ÆÇ¸Å°¡°Ý :ǰÀý
»óǰ»óÅ :½Å»óǰ
Á¦Ç°ÄÚµå :G00005419
Á¦Á¶»ç :ONKYO(¿ÂÄì)
ºê·£µå :ONKYO [ºê·£µå¹Ù·Î°¡±â]
±¸¸Å¼ö·® : ǰÀýµÈ »óǰÀÔ´Ï´Ù
ÃÑ ±Ý¾× :

¼³Ä¡±â

»óǰ»ó¼¼Á¤º¸

¡¡

ADVANCED FEATURES
HDMI¢ç Support for 3D, Audio Retu Channel, Deep Color¢â, x.v.Color¢â, LipSync, Dolby¢ç TrueHD, DTS-HD Master Audio¢â, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC

Direct Digital Connection of iPod/iPhone via Front-Panel USB Port

Supports Onkyo Remote App for Control of A/V Receiver via iPod/iPhone*

Dolby¢ç TrueHD and DTS-HD Master Audio¢â Decoding

Overlaid On-Screen Display (OSD) via HDMI

Audyssey 2EQ¢ç for Room Acoustic Correction

Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)

Inte et Radio Connectivity Through vTuner

Certified with Windows¢ç 7 and DLNA Version 1.5

Firmware Updates via Ethe et and USB

Zone 2 Line-Out for Distributed Audio Playback in Another Room

*Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS or later. (All models require iOS 4.2 or later.)

¡¡
AMPLIFIER FEATURES
H.C.P.S. (High Current Power Supply) Massive High Power Transformer

Optimum Gain Volume Circuitry

PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology for S/PDIF Audio

¡¡

PROCESSING FEATURES
TI Burr-Brown 192 kHz/24-Bit DACs for All Channels

Advanced 32-Bit Processing DSP Chip

4 DSP Modes for Gaming: Rock, Sports, Action, and RPG

Advanced Music Optimizer for Compressed Digital Music Files

Mass Storage Class USB Memory Playback Capability

Theater-Dimensional Virtual Surround Function

CinemaFILTER¢â

Direct Mode

Pure Audio Mode

Double Bass Function

Non-Scaling Configuration

A-Form Listening Mode Memory

¡¡

CONNECTION FEATURES
4 HDMI Inputs and 1 Output

Universal Port for UP-A1 Dock for iPod/iPhone

HDTV-Capable (720p/1080i) Component Video Switching (2 Inputs and 1 Output)

5 Composite Video Inputs (1 Front/4 Rear) and 2 Outputs

4 Digital Audio Inputs (2 Optical and 2 Coaxial)

6 Analog Audio Inputs (1 Front/5 Rear) and 1 Output

Subwoofer and Surround Back Pre Outs

Color-Coded, Banana Plug-Compatible Speaker Posts

Headphone Jack

¡¡

OTHER FEATURES
Audyssey Dynamic EQ¢ç for Loudness Correction

Audyssey Dynamic Volume¢ç to Maintain Optimal Listening Level and Dynamic Range

Crossover Adjustment (40/50/60/70/80/90/100/120/150/200 Hz)

A/V Sync Control (Up to 400 ms at 48 kHz)

Tone Control (Bass/Treble) for Front L/R Channels

3-Mode Display Dimmer (Normal/Dim/Dimmer)

40 FM/AM Random Presets

RIHD (Remote Interactive over HDMI) for System Control

Full-Function RI (Remote Interactive) Remote Control

¡¡

GENERAL SPECIFICATIONS
Frequency Response: 20 Hz–50 kHz/+1 dB, -3 dB (DSP bypass)

WHD: 435 x 173.5 x 328 mm

Weight: 9.3 kg

¡¡
