Model |

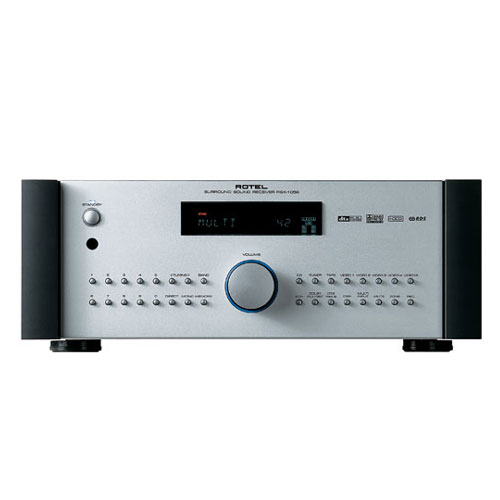

RSX-1056 |
AUDIO |
|
Continuous Amplifier Power (Number of channels driven) |
75 watts/ch (20-20k Hz, <0.05% THD, 8 ohms) (Five Channel Driven) |
Continuous Amplifier Power (two channels driven) |
100 watts/ch (1kHz, <1.0% THD, 8 ohms, DIN) (Two Channel Driven) |
Total Harmonic Distortion |
<0.09 % |
Intermodulation Distortion (60 Hz:7 kHz) |
<0.05 % |
Frequency Response |
|
Analog Bypass |
10 Hz - 120 KHz, ¡¾ 3 dB |
Digital Input |
10 Hz - 95 KHz, ¡¾ 3 dB |
Signal to Noise Ratio (IHF A-weighted) |
|
Analog Bypass |
95 dB |
Digital Input 0 dBFs (Dolby Digital, dts) |
92 dB |
Input Sensitivity/Impedance |
Line Level: 200 mV/100K ohms |
Contour (LF / HF) |
¡¾ 6 dB at 50 Hz / 15 KHz |
Preamp Output Level/Impedance |
1.0 V / 1K ohm |
Decodable Input Signal |
Dolby Digital, Dolby Digital EX, Dolby Prologic IIx, DTS, DTS_ES, DTS96/24, LPCM (up to 192K), HDCD, MP3, MPEGMultichannel |
Video |
|
Frequency Response |
3 Hz - 10 MHz, ¡¾ 3 dB (Composite, S-Video) 3 Hz - 100 MHz, ¡¾ 3 dB (Component Video) |
Signal to Noise Ratio |
45 dB |
Input Impedance |
75 ohms |
Output Impedance |
75 ohms |
Output Level |
1.0 Volt |
FM Tuner |
- |
Usable Sensitivity |
14.2 dBf |
Signal to Noise Ratio (at 65 dBf) |
70 dBf |
Harmonic Distortion (at 65 dBf) |
0.03% |
Stereo Separation (1 kHz) |
45 dB |
Output level |
1 V |
Antenna Input
|
75 ohms unbalanced |
AM Tuner |
|
Sensitivity |
500 uV/m |
Signal to Noise Ratio |
40 dB |
Output level |
500 mV |
Antenna Input |
Loop Antenna |
General |
|
Power Consumption: |
450 watts, Standby 6 watts |
Power Requirements (AC) |
115 volts, 60 Hz (USA version) 230 volts, 50 Hz (CE version) |
Dimensions (W x H x D):
|
433 x 162 x 421mm
|
Front Panel Height |
150 mm, 5.9' |
Weight (net): |
17 Kg |
