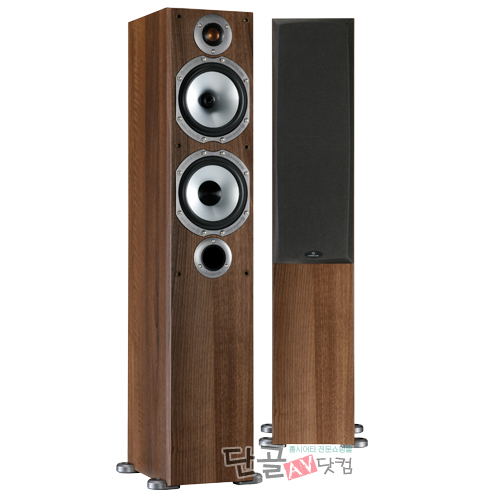

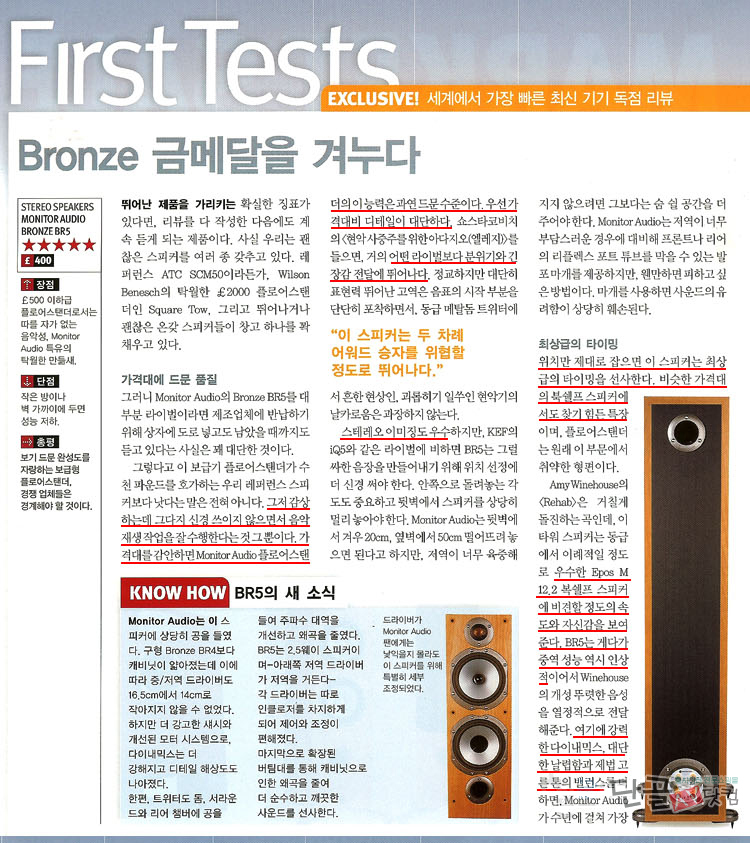

프론트스피커 : BR5
- Frequency Response +/- 3dB : 36 Hz - 30 KHz
- Sensitivity (1W@1M) : 90dB
- Nominal Impedance (Ohms) : 6
- Power Handling R.M.S (W) : 120
- Recommended Amplifier Requirements R.M.S (W) : 30-120
- Cabinet Design : Dual chamber bass reflex – Ported front and
rear
- Drive Unit : Complement 1 x 5.5' MMP® MK2 Bass 1 x 5.5' MMP® MK2
Bass mid-range, 1 x 1' (25mm) Gold Dome C-CAM® tweeter
- Exte
al Dimensions (cm) H x W x D : 85 x 16.5 x 24.7
- Exte
al Dimensions (inches) H x W x D : 33 7/16 x 6 1/2 x 9 3/4
- Individual Weight Kg (lb) : 11.5 (25.3)
- Weight Packaged Kg (lb) : 14 (30.8) (Packed Individually)

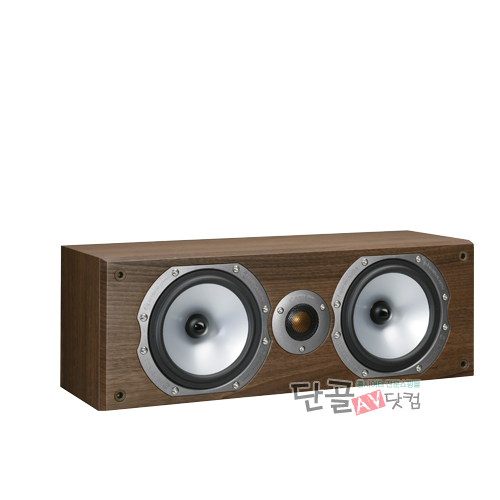

센터스피커 : BRLCR
- Frequency Response +/- 3dB : 60 Hz - 30 KHz
- Sensitivity (1W@1M) : 90dB
- Nominal Impedance (Ohms) : 6
- Power Handling R.M.S (W) : 120
- Recommended Amplifier Requirements R.M.S (W) : 20-120
- Cabinet Design : Sealed Cabinet
- Drive Unit Complement : 2 x 5.5' MMP® MK2 Bass mid-range, 1 x 1' (25mm) Gold Dome C-CAM® tweeter
- Exte
al Dimensions (cm) H x W x D : 16.5 x 46 x 16.5
- Exte
al Dimensions (inches) H x W x D : 6 ½ x 18 1/8 x 6 ½
- Individual Weight Kg (lb) : 6 (13.2)
- Weight Packaged Kg (lb) : 6.8 (15)

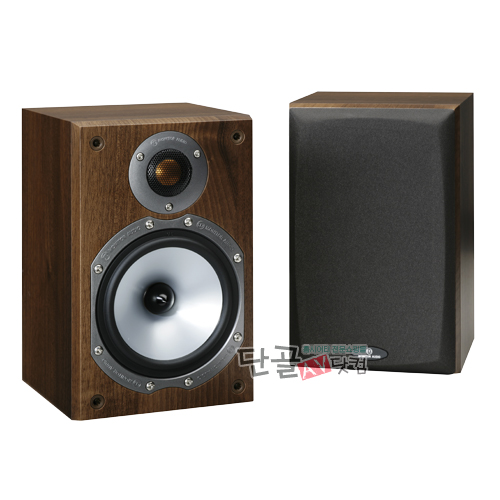

리어스피커 : BR1
- Frequency Response +/- 3dB : 55 Hz - 30 KHz
- Sensitivity (1W@1M) : 88dB
- Nominal Impedance (Ohms) : 6
- Power Handling R.M.S (W) : 70
- Recommended Amplifier Requirements R.M.S (W) : 15-70
- Cabinet Design : Rear ported Bass reflex
- Drive Unit : Complement 1 x 5.5' MMP® MK2 Bass mid-range, 1 x 1' (25mm) Gold Dome C-CAM® tweeter
- Exte
al Dimensions (cm) H x W x D : 26 x 16.5 x 18
- Exte
al Dimensions (inches) H x W x D : 10 1/4 x 6 1/2 x 7 1/16
- Individual Weight Kg (lb) : 3.8 (8.4)
- Weight Packaged Kg (lb) : 8.7 (19.1)

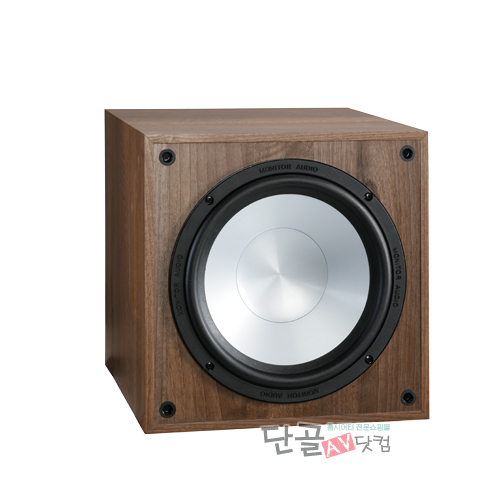

서브우퍼 : BRW10
- Low frequency limit : 27Hz
- Upper frequency limit : 40 – 120 Hz Variable
- Low pass filter alignment 4th order : 24db/octave
- Amplifier Output : 150 Watts (R.M.S)
- Amplifier classification : Class- D Digital amplifier
- Driver compliment : 1 x 10” MMP® MK2 long throw driver
- Input Impedance : 20K Ohms
- Mains input voltage : 115 Vac / 230 Vac Factory Preset. Do not
adjust
- Dimensions : All dimensions excluding grille
- Millimetres : 320 H x 320 W x 340 D
- Inches : 12 5/8 x 12 5/8 x 13 3/8
- Weight (unpacked) : 12.5 Kg (27.5lbs)
- Finishes : Black Oak, Cherry and Walnut vinyl’s. All fitted with
a black grille.
|
|
|
