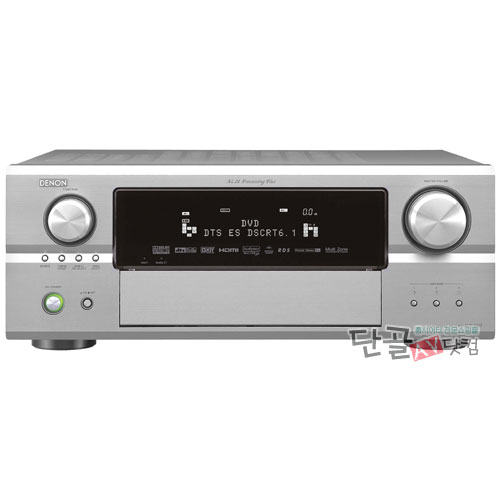

[제품설명]
새로운
AVR-2807 모델은 저렴한 금액대의 제품이다. 하지만 상급기인 AVR-4306에서 볼 수 있는 동일한 종류의
HDMI 스위칭과 480p 아날로그 비디오 소스 업컨버전 기능을 적용하고 있다. 또한
정교한 HDMI와 함께 AVR-2807은 데논으로부터 기대할 수 있는 채널당 110W의 출력, Audyssey MultEQ
XT 설정/측정 기능, 그리고 통합 위성 라디오를 위한 XM Connect-and-Play 지원과 같은 특징을 모두 포함하고
있다. 게다가 AVR-2807은 HDMI를 통하여 1080p의 고해상도 신호를 통과시킬 수 있도록 제작 되었다.
그리고 2807 모델은 4306에서 볼 수 있는 다이렉트 iPod/MP3 커넥터가 없는 대신 데논이 올해에 발표할
계획에 있는 새로운 iPod dock과 호환이 가능하도록 탑재하였다. AVR-2807과 연결하면, 이 덕(dock)은
2807 리모컨을 이용하여 오디오, 포토, 그리고 비디오 재생 컨트롤 기능을 사용할 수 있다.
[제품사양]
-
채널당 출력
: 110W
-
All Channels
Rated @ 0.05 THD
-
무게 :
13.5kg
-
크기(WHD)
: 434 x 170 x 429mm
-
사운드모드
Dolby Pro Logic IIx ? with Cinema, Music, Game Modes
Dolby Digital Surround EX Decoding
dts ES Discrete 6.1 Decoding
dts ES Matrix 6.1 Decoding
dts Neo:6 Stereo-to-Surround Cinema and Music Modes
dts 96/24 5.1 for DVD-Video Processing
Audio Signal Delay (Sync. Audio with Video signal) ? By source
Pure Direct/Direct/Stereo Modes on Digital/Analog inputs
Stereo/Direct Modes w/Pure Analog Path
5-Channel Stereo Mode
Video Game Mode
Wide Screen 7.1 Mode
Mono Movie Surround Mode
Rock Arena Surround Mode
Matrix Surround Mode
Jazz Club Surround Mode
Virtual Surround Mode ? For 2 Speakers/Headphones
Multi-Channel Stereo Mode : 5/6/7
Auto Surround Mode (Analog or Digital Input Type)
Active Center Channel In All Surround Modes
-
입출력
True 24-bit/96-kHz Digital Input Capability
Assignable Digital Inputs
Digital Inputs: Coaxial x 2
Digital Inputs: Optical x 5
Analog Audio Inputs, Incl. Tuner x 11
Phono Input : MM타입
Analog Record Outputs x 3
Front Panel A/V Inputs w/Cover * Composite and S-Video : * with Optical/Drop
Down Door
Video Conversion ?Composite to S-Video to Component
Video Conversion ? Composite to S-Video to Composite
Video Conversion ? Analog to HDMI
DVI/HDMI Video Inputs ? Compatible with 1.1 Spec. ? Multi-Channel
Audio *1080p HDMI x 2
HDMI Video Outputs *1080p x 1
Composite Video Inputs : 7 including front
Composite Video Outputs : 2 plus Mon/Z2
S-Video Inputs : 7 including front
S-Video Outputs : 2 plus Mon/Z2
Component Video Inputs x Bandwidth - *Assignable : 3 x 100Mz
Component Video Outputs x 2
8-Ch. Exte
al Analog Input
Banana Plug Speaker Terminals, All Channels
Cinema EQ
56 Station Auto-Preset Memory Tuning
XM Satellite Radio 'Connect and Play' Ready ? with optional antenna
Direct Function (Tone Bypass)
Volume Control Un-muting
Selectable Muting Levels (Full/-40/-20)
Video Select Control
RS-232 Port ? Third Party Remote Controllers
IR Serial Remote In/Out terminals
+12v Trigger Output - Assignable : 2/25mA
Multi-Source/Multi-Zone (*Uses REC OUT) : 2S/3Z
Pre-amp Outputs for Multi-Zone
Multi-Zone Pre-Amp Outputs ? Selectable Output Levels
Discrete Multi-Zone Composite Video Output - *S-Video also
Discrete Remote Power On/Off, Source Selection and Volume for Main
and Second/Third* Zones
Assignable Amplifier Configuration of Surround Back Channels with
Volume
Speaker Time-Delay and Level Controls: L/R, Sub, C, Surr. L/R, Surround
Back
Pre-Amp Outputs : All (8)
iPod Dock Control Port (Using optional ASD-1R Denon iDock)
-
기술사양
Equal Power Amplifiers : 7ch
Low Impedance Drive Capability
High-Current/Discrete Amplifiers
Independent Power Supplies
Dolby Digital, dts and DSP Modes ? Analog Devices, HammerHead SHARC
24-bit/192-kHz DACs - Analog Devices : AD-1835
Analog-to-Digital Conversion - Bit Depth/Sampling Rate : 24-bit/96kHz
Variable High/Low Pass Crossover Points (12/24dB) 40/60/80/100/120/150/200/250
Built In Time Based Correction
-
편의 사항
Front Panel A/B Speaker Selector : by remote
Auto Setup Calibration
Auto/Manual Room Equalization
Audyssey MultEqxt Room Eq. with up to eight position setup : 6 position

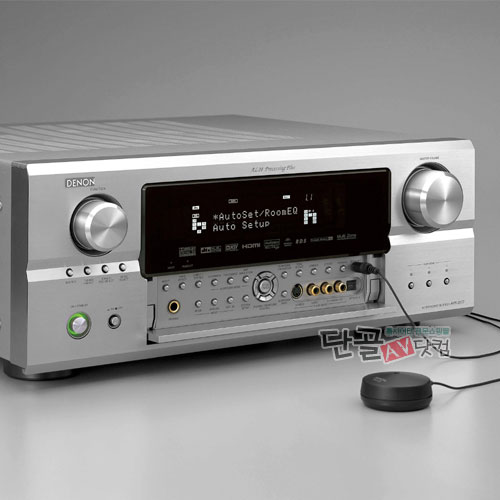

Auto Setup Microphone Included/Type : Y/Mold DM-S205
Icon-Based On-Screen DisplayFront Panel System Setup Control
Personal Memory Plus
System Setup/Surround Parameters Lockout
Microprocessor User Re-set
Detachable Power Cord

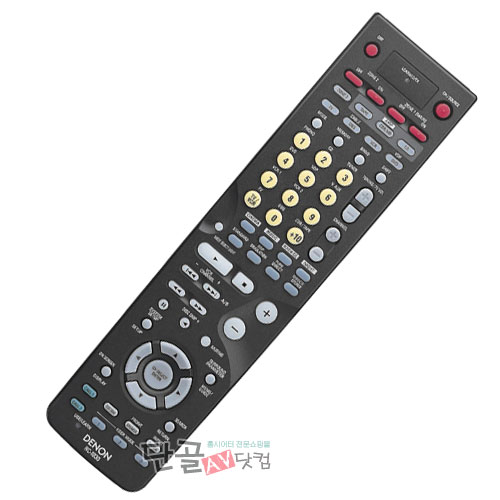

Pre-programmed (10 Devices) Glow Key Remote Control with Punch Through
Commands
|
|
|
|
