Features
The S-300i is the first Krell integrated amplifier to feature iPod
connectivity and extends the award winning tradition of audiophile grade
integrated amplifiers.

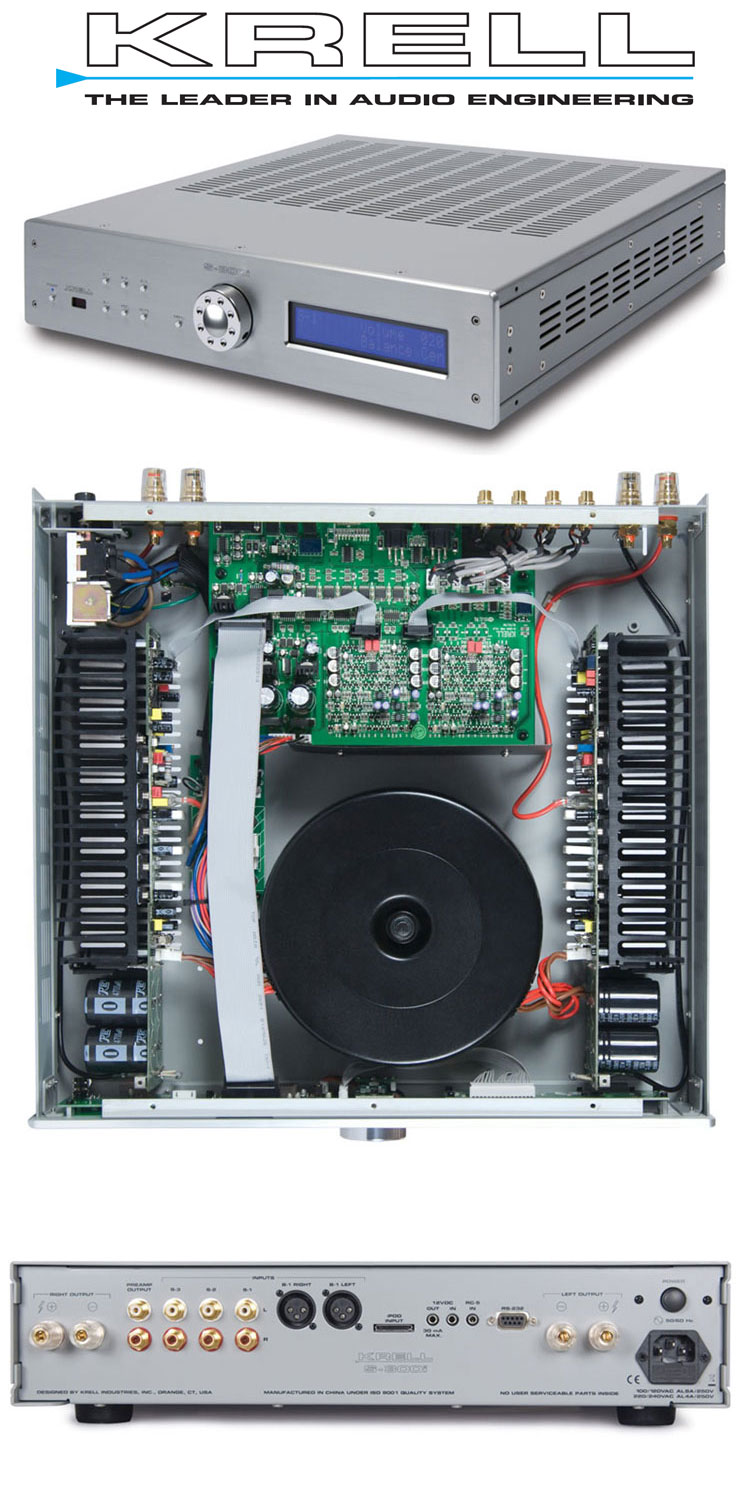

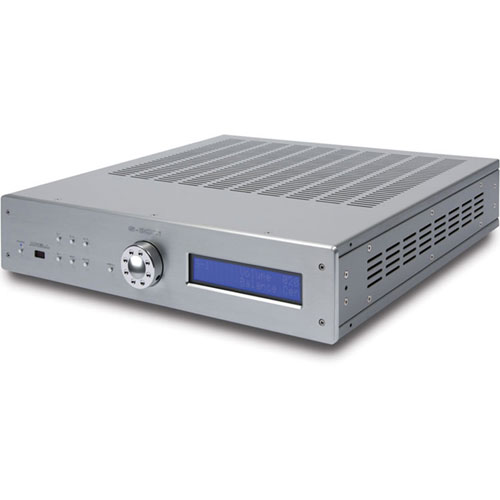

A low profile chassis fronted by an elegantly finished silver Aluminum
front panel hints at the potent circuitry hidden within its walls. Small
in stature but big in performance, the S-300i integrated amplifier
develops 150 W into 8 Ohms and 300 W into 4 Ohms. Employing a massive
750 VA toroidal transformer and 38,000 microfarads of capacitance
guarantees huge power capability for maximum dynamic impact. Both
balanced and single-ended inputs are provided, and the Theater
Throughput™ mode, developed by Krell, simplifies integration into home
theater systems. Robust WBT binding posts provide superior loudspeaker
cable termination. New for the S-300i is direct connection for all
generations of Apple iPods /iPhones with complete control of the iPod
functionality via the included remote control. Unique for the category,
the S-300i taps audio from the fully differential output included in the
inte
al DACs of iPods/iPhones and maintains this balanced signal
throughout the circuitry.
The S-300i features the latest Krell Class A, direct coupled design, and
fully balanced preamplifier circuitry for the lowest noise reproduction
possible. Krell Current Mode provides unequaled bandwidth for the most
revealing playback of today's high resolution music sources. Direct
coupled circuitry eliminates impact-robbing capacitors from the signal
path and an elegant, custom-machined level control adjusts volume.
The included solid aluminum remote control replicates all front panel
options as well as providing control for a connected iPod/iPhone. RS-232
is also included for inclusion in advanced control systems.
Specfication
Inputs
1 pr. balanced via XLR connectors
3 pr. single-ended via RCA connectors
1 dedicated iPod input via 30-pin connector
Outputs
1 pr. preamp outputs via RCA connectors
1 pr. speaker outputs via gold-plated binding posts
Control inputs
1 RS-232 input via 9-pin D-subminiature connector
1 remote IR detector input via 3-conductor 3.5 mm connector
1 12 VDC trigger input via 2-conductor 3.5 mm connector
Control output
1 programmable 12 VDC trigger output (30 mA maximum current) via
2-conductor 3.5 mm connector
Input impedance
Balanced: 95 kΩ
Single-ended: 47.5 kΩ
Frequency response
20 Hz to 20 kHz +0, -0.14 dB
<2 Hz to 110 kHz +0, -3 dB
Signal-to-noise ratio
>84 dB, wideband, unweighted, at maximum gain, referred to full power
output
>93 dB, 'A'-weighted
Gain
32.5 dB
Input sensitivity
Single-ended or balanced: 800 mV RMS
Total harmonic distortion
<0.035% at 1 kHz, at 150 W, 8 Ω load
<0.26% at 20 kHz, at 150 W, 8 Ω load
Output power
150 W RMS per channel at 8 Ω
300 W RMS per channel at 4 Ω
Output voltage
99 V peak to peak
35 V RMS
Output current
15 A peak
Slew rate
50 V/S
Output impedance
<0.080 Ω at 20 Hz
<0.11 Ω, 20 Hz to 20 kHz
Damping factor
>100 at 20 Hz, referred to 8 Ω
>75, 20 Hz to 20 kHz, referred to 8 Ω
Power consumption
Standby: 40 W
Idle: 60 W
Maximum: 1000 W
Heat output
Standby: 140 BTU/hr
Idle: 210 BTU/hr
Maximum: 1600 BTU/hr
Specifications for preamp only:
Gain
6.3 dB (single-ended)
Volume control
Current-mode, 12-bit, discrete R-2R ladder
Input overload
Balanced: 12 V RMS
Single-ended: 6 V RMS
Output overload
8 V RMS (single-ended)
Frequency response
20 Hz to 20 kHz +0, -0.05 dB
<2 Hz to 1.0 MHz +0, -3 dB
Total harmonic distortion
<0.009%, 20 Hz to 20 kHz, at 2 V RMS
Signal-to-noise ratio
>85 dB, wideband, unweighted, at maximum gain, referred to 2 V RMS
>94 dB, 'A'-weighted
Dimensions
17.26 in W x 4.09 in H x 17.70 in D
438 mm W x 104 mm H x 450 mm D
Weight
Unit only: 42 lb [19.0 kg]
As shipped: 51 lb [23.1 kg]
Input sensitivity
Single-ended or balanced: 1.18 V RMS
Total harmonic distortion
<0.025% at 1 kHz, at 275 W, 8 Ω load
<0.20% at 20 kHz, at 275 W, 8 Ω load
Output power
275 W RMS per channel at 8 Ω
550 W RMS per channel at 4 Ω
Output voltage
133 V peak to peak
47 V RMS
Output current
20 A peak
Slew rate
80 V/μs
Output impedance
<0.073 Ω at 20 Hz
<0.08 Ω, 20 Hz to 20 kHz
Damping factor
>110 at 20 Hz, referred to 8 Ω
>75, 20 Hz to 20 kHz, referred to 8 Ω
Power consumption
Standby: 1 W
High-current standby: 40 W
Idle: 90 W
Maximum: 1800 W
Heat output
Standby: 3.4 BTU/hr
High-current standby: 140 BTU/hr
Idle: 310 BTU/hr
Maximum: 2400 BTU/hr
Specifications for preamp only:
Gain
6.3 dB (single-ended)
Volume control
Current-mode, 12-bit, discrete R-2R ladder
Input overload
Balanced: 12 V RMS
Single-ended: 6 V RMS
Output overload
8 V RMS (single-ended)
Frequency response
20 Hz to 20 kHz +0, -0.05 dB
<2 Hz to 1.0 MHz +0, -3 dB
Total harmonic distortion
<0.009%, 20 Hz to 20 kHz, at 2 V RMS
Signal-to-noise ratio
>87 dB, wideband, unweighted, at maximum gain, referred to 2 V RMS
>94 dB, 'A'-weighted
Dimensions
17.26 in W x 5.84 in H x 17.70 in D
438 mm W x 148 mm H x 450 mm D
Weight
Unit only: 64 lb [29.0 kg]
As shipped: 76 lb [34.4 kg]
|
