ADVANCED FEATURES
- THX® Select2 Plus™ Certified
- HDMI® Support for 3D, Audio Retu
Channel, DeepColor™, x.v.Color™, LipSync,
Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel
PCM, and CEC
- High-Quality HQV® Vida™ VHD1900 Video Processor
- ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance
- HDMI Video Upscaling to 4K with Qdeo™ Technology by Marvell
- Direct Digital Connection of iPod/iPhone via Front-Panel USB Port
- Supports Onkyo Remote App for Control of A/V Receiver via iPod/iPhone* and
Android Phone*2
- DTS Neo:X™, Audyssey DSX™, and Dolby® Pro Logic® IIz for Expanded Surround
Channels
- Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC,
WAV, Ogg Vorbis, AAC, LPCM)
- Inte
et Radio Connectivity Through vTuner
- Powered Zone 2/3 and Zone 2/3 Pre-Outs for Distributed Audio Playback in Multiple
Rooms
- *Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS
or later. (All models require iOS 4.2 or later.)
- *2 Requires Android OS 2.1 or later.
AMPLIFIER FEATURES
- WRAT (Wide Range Amplifier Technology)
- Three-Stage Inverted Darlington Circuitry
- H.C.P.S. (High Current Power Supply) Massive High-Power Transformer
- Linear Optimum Gain Volume Circuitry
- PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology
PROCESSING FEATURES
- Dolby® TrueHD and DTS-HD Master Audio™ Decoding
- TI Burr-Brown 192 kHz/24-Bit DACs (PCM1690 and PCM1798) for All Channels
- Advanced 32-Bit Processing DSP Chip
- 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG
- Advanced Music Optimizer for Compressed Digital Music Files
- Handles Playback of Mass Storage Class USB Memory
- Theater-Dimensional Virtual Surround Function
- Direct Mode and Pure Audio Mode
- Double Bass Function
- Non-Scaling Configuration
- A-Form Listening Mode Memory
CONNECTION FEATURES

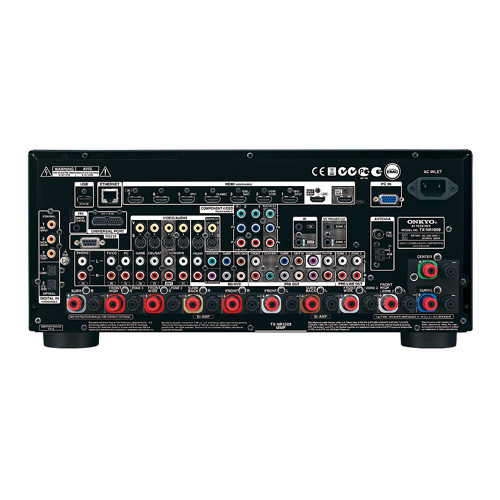

- 8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs
- Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone
- 2 USB Ports (1 Front/1 Rear)
- Compatible with UWF-1 Wireless LAN Adapter (via Front-Panel USB Port)
- 2 Component Video Inputs and 1 Output
- 5 Composite Video Inputs and 2 Outputs
- 4 S-Video Inputs and 2 Outputs
- Analog RGB Input (D-sub, 15 pin) for PC Video
- 6 Digital Audio Inputs (3 Optical and 3 Coaxial)
- 6 Analog Audio Inputs and 1 Output
- Phono Input
- Color-Coded, 7.1 Multichannel Inputs
- Color-Coded, 9.2 Multichannel Pre Outs
- Bi-Amping Capability
- RS232 Port, IR Input/Output, and 12 V Trigger Out (Zone 2/3)
OTHER FEATURES
- Overlaid Graphical On-Screen Display (OSD) and GUI Navigation via HDMI
- Audyssey MultEQ® XT to Correct for Room Acoustics
- Audyssey Dynamic EQ® for Loudness Correction
- Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range
- Dolby® Volume for Reference-Quality Listening at Any Volume
- Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200
Hz)
- A/V Sync Control (Up to 800 ms in 5 ms Steps)
- Tone Control (Bass/Treble) for Front and Zone 2 L/R Channels
- Illuminated Volume Knob (White)
- Light Dimming (Display: Normal/Dim/Dimmer; Volume Knob LED: On/Off)*
- 40 FM/AM Random Presets
- Firmware Updates via Ethe
et and USB
- Certified with Windows® 7 and DLNA Version 1.5
- RIHD (Remote Interactive over HDMI) for System Control
- Bi-Directional, Preprogrammed, and Customizable RI Remote Control with On-Screen
Setup, Mode-Key LEDs, and Macro Presets for Four Activities
- *Note: Volume knob LED is always off when display is dimmed.
GENERAL SPECIFICATIONS
- 230 W/Ch at 6 Ohms, 1 kHz, 1%, 1 Channel Driven, JEITA;
- 180 W/Ch at 6 Ohms, 1 kHz, 1%, 1 channel driven, IEC;
- 160 W/Ch at 6 Ohms, 1 kHz, 0.1%, 2 channels driven, FTC
- Frequency Response: 5 Hz?100 kHz/+1 dB, -3 dB (Direct mode)
- WHD: 435 x 198.5 x 435.5 mm
- Weight: 18.5 kg
|
|
|
