Technical data: |

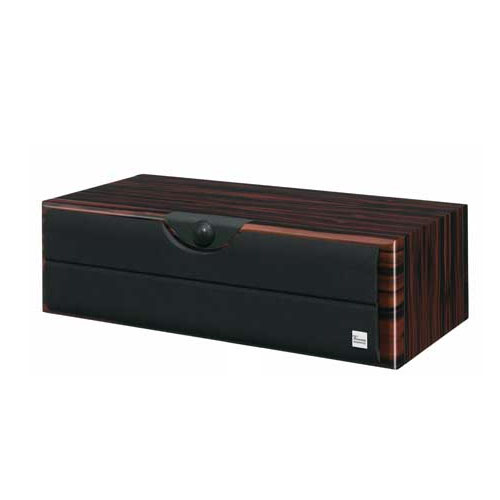

MAESTRO Grand |
Impedance |
4 Ohms (minimum) |
Frequency Response |
38 - 22000 Hz |
Sensitivity |
91 dB |
Recommended Amplifiers |
30-200 Watts |
Drive Units |
|
2 X 6' Bass/Midrange Driver |
X3P Cone, 'Spider-Cone'-Technology |
1 ' Dome-Tweeter |
hand-coated VA Silk Dome |
Bass System |
Bassreflex, 2xFrontported |
bass Function |
Impulsoptimizing QB 3 (Quasi Butterworth) |
Crossover Components MKP Capacitors 1% tolerance Coils 0,7% tol., Exclusively Air Coils Metal Film Resistors, 1% tol., inductance free |
|
Crossover Function 2-way |
dB and 12 dB Bessel |
Weight per Piece |
30 Ibs / 14Kg |
Dimension (W x H x D) |
590 x 172 x 291 mm |
|
|
