[제품사양]

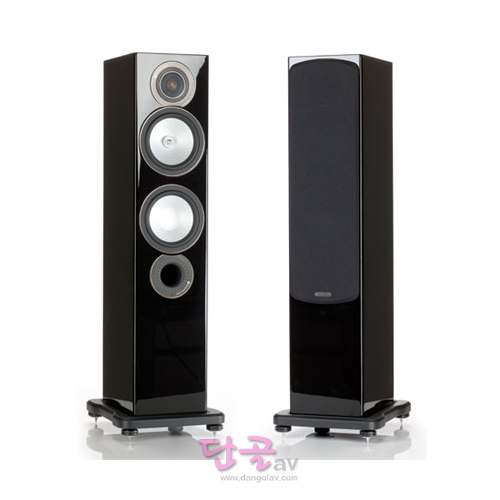

프론트 스피커 : RX6
- System Format : 2 1/2 Way
- Frequency Response : 38Hz - 35kHz
- Sensitivity (1W@1M) : 90dB
- Nominal Impedance : 6 Ohms
- Maximum SPL (dBA) : 114.8
- Power Handling (RMS) : 125W
- Recommended Amplifier Requirements (RMS)
: 40-125W
- Bass Alignment : Dual Chamber, Bass
reflex with differential tuning. Twin HiVe®II port System
- Tweeter Crossover Frequency :
- LF : 700Hz
- MF/HF : 2.7kHz
- Drive Unit Complement :
- 1 x 6' RST® Bass drivers.
- 1 x 6' RST® Bass/Mid driver
- 1 x 1' (25mm) C-CAM® gold dome tweeter
- Product Exte
al Dimensions (H x W x
D) : 905 x 275 x 310 mm (37 5/8 x 10 13/16 x 12 3/16 inch) inc.
plinth & feet
- Individual Weight : 16.4 Kg (36.13 lb)

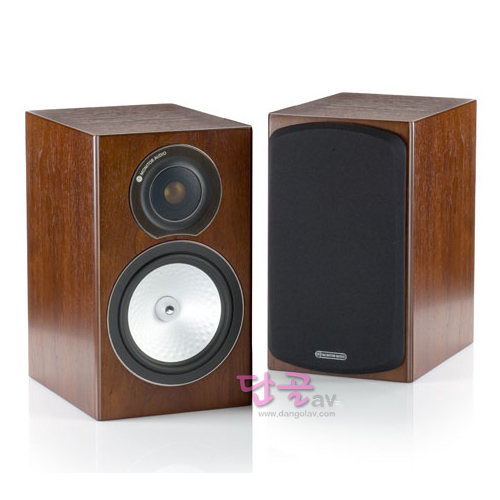

리어 스피커 : RX1
- System Format : 2 Way
- Frequency Response : 45Hz - 35Hz
- Sensitivity (1W@1M) : 89dB
- Nominal Impedance : 6 Ohms
- Maximum SPL (dBA) : 111.8
- Power Handling (RMS) : 80W
- Recommended Amplifier Requirements (RMS)
: 25-80W
- Bass Alignment : Bass reflex - rear
ported. HiVe®II port System
- Tweeter Crossover Frequency : 3.0kHz
- Drive Unit Complement :
- 1 x 6' RST® Bass/Mid driver.
- 1 x 1' (25mm) C-CAM® gold dome tweeter
- Product Exte
al Dimensions (H x W x
D) : 312 x 185 x 240 mm (12 5/16 x 7 5/16 x 9 7/16 inch)
- Individual Weight : 6.8 Kg (15 lb)
센터 스피커 : RX Center
- System Format : 2 1/2 Way
- Frequency Response : 45Hz - 35kHz
- Sensitivity (1W@1M) : 90dB
- Nominal Impedance : 6 Ohms
- Maximum SPL (dBA) : 114.8
- Power Handling (RMS) : 125W
- Recommended Amplifier Requirements (RMS)
: 40-125W
- Bass Alignment : Sealed Cabinet
- Tweeter Crossover Frequency :
- LF : 500Hz
- MF/HF : 3.0kHz
- Drive Unit Complement :
- 1 x 6' RST® Bass driver.
- 1 x 6' RST® Bass/Mid driver
- 1 x 1' (25mm) C-CAM® gold dome tweeter
- Product Exte
al Dimensions (H x W x
D) : 185 x 500 x 200 mm (7 5/16 x 19 11/16 x 7 7/8 inch)
- Individual Weight : 9.62 Kg (21.13 lb)

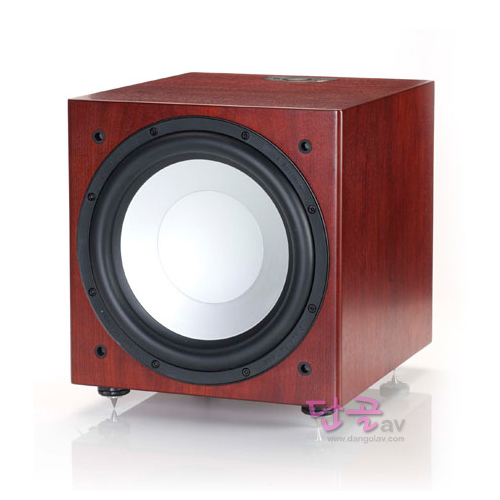

서브우퍼 스피커 : RXW-12
- Low Frequency Limit : 27Hz (EQ1) 21Hz
(EQ2)
- Upper Frequency Limit : 40 - 120Hz
Variable
- Power Output : 500W RMS (1000W Peak)
- Low Pass Filter Alignment : Active 4th
order 24dB/Octave (2nd stage filter)
- Cabinet Specification : 25mm
construction and inte
al bracing
- Cabinet Alignment: sealed cabinet
- Driver Complement : 1 x 12' C-CAM® sub
woofer driver featured triple suspension and ling throw 3' voice
coil
- Exte
al Dimensions (H x W x D) inc.
amp & driver : 340 x 340 x 410 mm (13 3/8 x 13 3/8 x 16 1/8 inch)
- Exte
al Dimensions (H x W x D) inc.
feet & grille : 375mm (15') high with feet 430mm (16 15/16') deep
inc amp & grille
- Mains Input Voltage Specification :
110 - 120 Vac / 220 - 240 Vac 50/60Hz
- Individual Weight : 22.56 Kg (49.63
lb)
|
|
|
