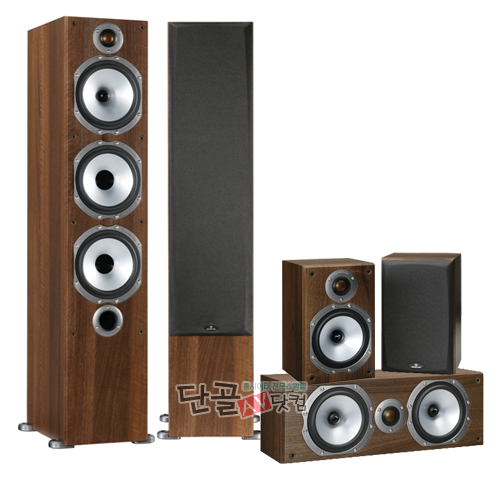

프론트스피커 : BR6
- Frequency Response +/- 3dB : 33 Hz - 30 KHz
- Sensitivity (1W@1M) : 90dB
- Nominal Impedance (Ohms) : 4
- Power Handling R.M.S (W) : 150
- Recommended Amplifier Requirements R.M.S (W) : 40-150
- Cabinet Design : Dual chamber bass reflex – Ported front and
rear
- Drive Unit : Complement 2 x 6.5' MMP® MK2 Bass 1 x 6.5' MMP® MK2
Bass mid-range, 1 x 1” (25mm) Gold Dome C-CAM® tweeter
- Exte
al Dimensions (cm) H x W x D : 97 x 20 x 30
- Exte
al Dimensions (inches) H x W x D : 38 3/16 x 7 7/8 x 11
13/16
- Individual Weight Kg (lb) : 17.4 (38.3)
- Weight Packaged Kg (lb) :20.4 (44.9) (Packed Individually)

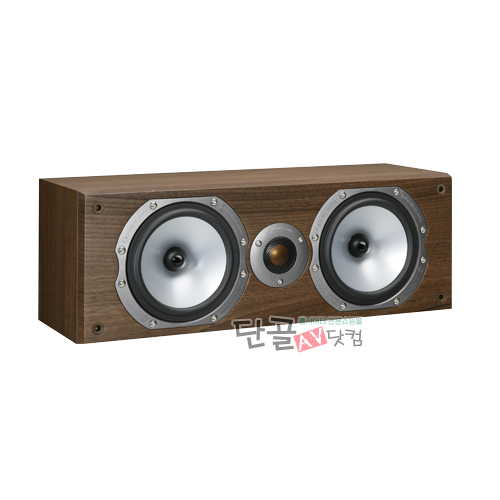

센터스피커 : BRLCR
- Frequency Response +/- 3dB : 60 Hz - 30 KHz
- Sensitivity (1W@1M) : 90dB
- Nominal Impedance (Ohms) : 6
- Power Handling R.M.S (W) : 120
- Recommended Amplifier Requirements R.M.S (W) : 20-120
- Cabinet Design : Sealed Cabinet
- Drive Unit Complement : 2 x 5.5' MMP® MK2 Bass mid-range, 1 x 1' (25mm) Gold Dome C-CAM® tweeter
- Exte
al Dimensions (cm) H x W x D : 16.5 x 46 x 16.5
- Exte
al Dimensions (inches) H x W x D : 6 ½ x 18 1/8 x 6 ½
- Individual Weight Kg (lb) : 6 (13.2)
- Weight Packaged Kg (lb) : 6.8 (15)

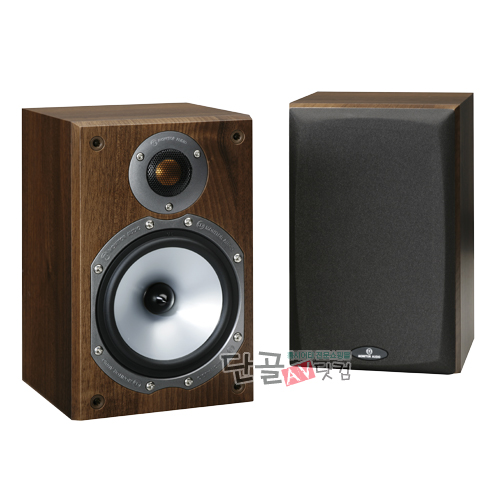

리어스피커 : BR1
- Frequency Response +/- 3dB : 55 Hz - 30 KHz
- Sensitivity (1W@1M) : 88dB
- Nominal Impedance (Ohms) : 6
- Power Handling R.M.S (W) : 70
- Recommended Amplifier Requirements R.M.S (W) : 15-70
- Cabinet Design : Rear ported Bass reflex
- Drive Unit : Complement 1 x 5.5' MMP® MK2 Bass mid-range, 1 x 1' (25mm) Gold Dome C-CAM® tweeter
- Exte
al Dimensions (cm) H x W x D : 26 x 16.5 x 18
- Exte
al Dimensions (inches) H x W x D : 10 1/4 x 6 1/2 x 7 1/16
- Individual Weight Kg (lb) : 3.8 (8.4)
- Weight Packaged Kg (lb) : 8.7 (19.1)
|
|
|
